Yutai introduces high power charger master chip eta8049, which can be used for PD fast charging!

Yutai semiconductor AC / DC control chip family has launched two high-performance quasi resonant control chips eta8047 and eta8048, and now it has launched the universal AC / DC controller eta8049! It can directly replace the current general adapter scheme with large occupancy rate of less than 65W. Seemingly familiar and simple, ordinary foot manipulation has different functions.

iPhone 12 charger

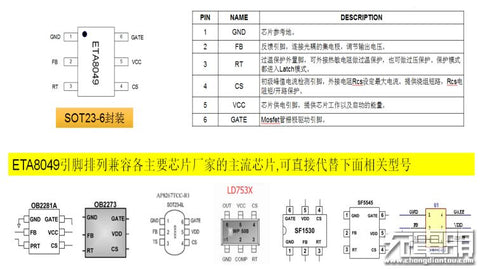

Eta8049 inherits the wide voltage 7-37v VCC design of Yutai semiconductor AC / DC control chip family, and meets the simple QC / PD design requirements. Eta8049 adopts universal pin arrangement, and the chip directly replaces most of the existing schemes with P2P. It has smaller standby power consumption, higher efficiency and more intelligent protection. As shown in figure-1 below, the pin arrangement of eta8049 is the same as that of most chips in the market, and its basic functions are also the same. It can be directly replaced and is easy to use. The chip inherits the basic control method of Yutai semiconductor AC / DC control chip family, and integrates soft start circuit, which is used to protect the switching devices (mainly switch tube, transformer, rectifier Schottky) when the system starts, reduce the switching stress, and make the output voltage rise without overshoot. At the same time, the integrated fast start circuit is used to ensure that the system can start smoothly when the capacitive load is large, and the output voltage rise time is shorter when there is no capacitive load. Yutai eta8049 integrated peak current compensation circuit can keep the maximum power point constant when the common standard application is high or low voltage; The slope compensation function of harmonic oscillation caused by low voltage and large duty cycle is integrated, and the compensation value of actual situation is adjusted by external resistance rslope to keep the system stable. Eta8049 external thermistor way to do high-precision adjustable over-temperature protection, RT pin can also be expanded as input adjustable over-voltage and under voltage, VCC adjustable over-voltage protection, after the protection, the chip into a unique latch mode, must be turned off and power on again to start, in order to reduce the wrong mode of switch impact protection system devices. Eta8049 integrates current soft driving technology and driving voltage clamping circuit to reduce switching noise and EMI radiation interference for the whole system; Integrate regular frequency jitter technology to effectively reduce EMI conducted interference for the whole system.

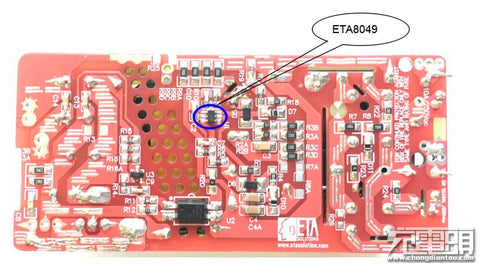

The prototype system scheme is shown in figure-2, which realizes the system scheme of 60W level 6 energy efficiency.
Apple Charger Cable
For example, the measured data of the prototype are as follows: (based on the same power device and driving peripheral parameters, only replace the chip)
Apple Charger Cable
Eta8049 reduces the standby loss by reducing the starting leakage current and the static working current; Greater drive current capability, segmented current drive and voltage clamp to achieve better efficiency and EMI performance. More reasonable peak current compensation can get better consistent overload current point.

Eta8049 integrated comprehensive error protection mode, with VCC over / under voltage, RT over / under voltage, output short-circuit over-current, overload over temperature, transformer winding / Schottky short-circuit, RCS on / short-circuit protection, etc. VCC over-voltage and RT over / under voltage enter the lock mode, which must be powered on again to work normally. Other protection chips will enter the burping mode, which has the function of error removal and automatic restart. These two methods can meet the needs of more applications.
