Solar portable charger made by ourselves

In our daily life, mobile phones, digital cameras, Walkman and other electronic equipment are equipped with recyclable rechargeable batteries. When the rechargeable batteries are insufficient, they can be recharged by the charger. The current chargers are divided into seat chargers and travel chargers. The seat charger directly connects the rechargeable batteries to the 220 V socket power supply Travel charger is also known as mobile power supply, which is a set of power supply and charging functions in one charger; while mobile power supply can only charge the rechargeable battery when it reserves a certain amount of power; so whether it is a seat charger or a travel charger, it must be powered by a 220 V socket power supply, which can not be truly realized "Anytime and anywhere" power supply for electronic equipment, so there are some limitations, poor portability.


Outdoors, the use of personal electronic devices continues to grow, creating a demand for portable power solutions to charge these devices. Portable solar panels have become the preferred power supply.

It is suitable for business trip, travel, long-distance travel, field operation and other environments; the portable charger can be charged at any time whether indoors or outdoors; it can be used for lighting; and it can meet different voltage work. And more convenient and portable. The specific steps are as follows:
Complete battery chip

1、 Solar cell cutting

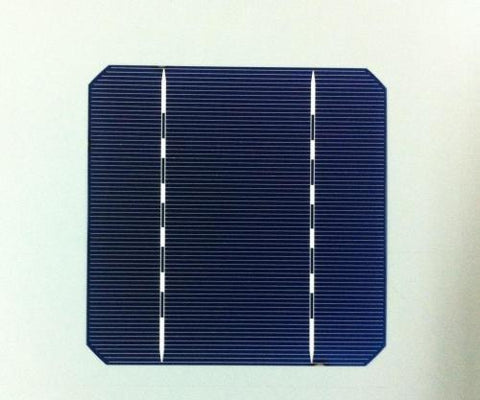

According to the required voltage and current, cut the battery into the corresponding size. In general, the open circuit voltage of a solar cell is about 0.5-0.6V, the voltage of the glue plate = the number of small cells * 0.6V, and the current of the glue plate is proportional to the area of the small cells. When laser scribing, it is necessary to pay attention to the setting power, frequency and scribing speed of the laser. The scribing depth should be kept at two-thirds and cannot be cut through.

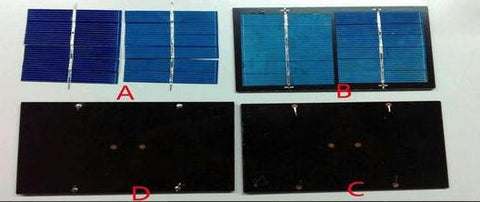

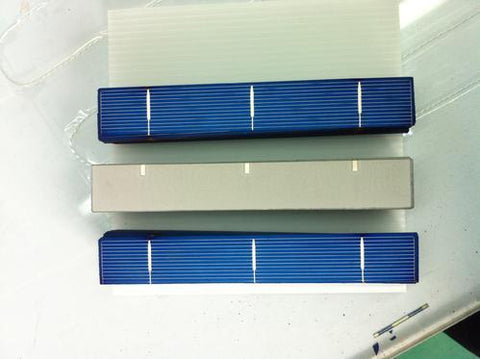

Battery slice after cutting
2、 Cell welding
The battery piece is welded, and a plurality of thin welding strips are used for bridging, and the delimited battery pieces are connected in series one by one. Before welding, the welding strip must be soaked in flux for a period of time and used after drying. Welding iron must use constant temperature iron, welding time should be fast and accurate.
3、 Pasting and fixing
Stick double-sided tape on the adhesive dropping base plate and stick the welded battery piece on. The welding strip passes through the small hole of the adhesive dropping base plate to the back and is welded to the pad.
Fix it with double-sided adhesive tape and thread out the positive and negative leads
4、 Detection
After welding, it is necessary to check. Put the semi-finished product of glue dropping plate on the test bench, and measure the current and voltage value through the irradiation of iodine tungsten lamp.

The open circuit voltage is 7V and the working voltage is 5V
5、 Gutta percha package
Place the qualified semi-finished products on the dropping table, and take glue a and glue B according to the mass ratio. Mix AB group 1:2 and stir evenly. The mixed glue is injected into the dropping bottle, and then the glue is injected into the front of the patch board from the dropping bottle, and the glue on the patch board is evenly distributed with tools.
Inject AB glue below
6、 Drying
Put the vacuum treated glue dropping board into the oven and heat it to solidify the glue. Control at about 60 degrees, the time is about 2 hours, if there is no oven, you can dry the glue in the sun.
Solar panels of different shapes can be made
7、 Welding charging line
After testing the current and voltage of the glue dropping board again, fix the junction box and weld the corresponding charging line according to the connector specification of the mobile phone or charging product. If you increase the charging current, you can add one more solar panel of the same specification for grid connection, so that the charging time of mobile phone can be accelerated. The two solar panels are fixed with small hinges, which can be folded and stored more conveniently.
