E-commerce boom: Huiyue optoelectronics launches 10 PD fast charging chargers

Dongguan Huiyue optoelectronics Co., Ltd. was established in 2008. The factory is located in Huiyue optoelectronics industrial intelligent garden, No.25, Dongxingyuan 1st Road, Dongkeng Town, Dongguan City, covering an area of 12000 square meters and employing 382 people; With a R & D team of more than 30 people, it has always maintained product technology innovation and won the title of national high-tech enterprise. It is a professional R & D and production manufacturer of power adapter, LED power supply and consumer power supply products, and its products are favored by various industries and e-commerce / channel brands.

The production process of Huiyue optoelectronics is implemented in strict accordance with the quality management standard system, in line with iso9001:2015 standard, and all raw materials are strictly inspected and screened. At present, our products have applied for CE, FCC, ROHS, ctuvus, ETL, UL, GS, CB, BS, PSE, KC, KCC, SAA, c-tick and other global certification.

In the face of the rapid growth of USB PD fast charging market, Huiyue optoelectronics has launched a series of 20w-65w PD fast charging chargers. The products of each power section have a variety of interface configurations, and can also provide a variety of specifications of pins and comprehensive certification, which provides a rich reference for the product selection of cross-border e-commerce.

1、 Huiyue photoelectric 20W PD fast charging charger

The single C-Port folding pin 20W PD fast charging model of bp-pd200u1c is introduced by Huiyue optoelectronics. It has four kinds of color matching, including white, black, dark blue and dazzle powder, and is equipped with the appearance design of semi frosted and semi smooth surface. The length is 43mm, the width is 39mm and the thickness is 28mm.

Support 90v-264v ~ 50-60Hz wide voltage input, usb-c interface output support 5v3a, 9v2.22a, 12v1.67a, maximum output power 20W, perfect for iPhone 12 series. It also supports pd3.0, Qualcomm qc3.0, Huawei FCP, Samsung AFC and Huawei SCP fast charging. The shell is made of PC material. The product provides 2-year warranty and has passed the safety certification of CB, ETL, CCC, PSE, CE, FCC, SAA and BSMI.

2、 Huiyue photoelectric 20W 1a1c fast charging charger

The 1a1c interface folding pin 20W PD fast charging device introduced by Huiyue optoelectronics is bp-pd201u1c. It has white, black, dark blue and dazzling colors, and is equipped with the appearance design of semi frosted and semi smooth surface. The length is 43mm, the width is 39mm and the thickness is 28mm.

Support 90v-264v ~ 50-60Hz wide voltage input, output usb-c port support 5v3a, 9v2.22a, 12v1.67a, maximum output power 20W, perfect for iPhone 12 series. It also supports pd3.0, Qualcomm qc3.0, Huawei FCP, Samsung AFC and Huawei SCP fast charging.

The usb-a port supports 5v3a, 9v2a, 12v1.5a, and the maximum output power is 18W. When the two ports are used together, the output power is 5v3.1a. The shell is made of PC material. The product provides 2-year warranty and has passed the safety certification of CB, ETL, CCC, PSE, CE, FCC, SAA and BSMI.

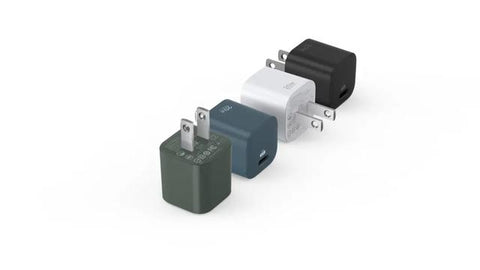

3、 Huiyue photoelectric 20W Mini PD fast charging charger

The mini 20W PD charger launched by Huiyue optoelectronics is only the size of Apple 5W, and it also makes great efforts in heat dissipation. The charger is available in three colors: white, black, blue and green, corresponding to the color of the iPhone 12 series.

The charger adopts three-dimensional layout technology, which creates a high-density volume through three-dimensional stacking of components. It is only half the size of the ordinary 20W charger on the market, with a length of 28.5mm, a width of 28.5mm, a thickness of 30mm and a weight of only 33g. It can be easily put into the pocket when going out. It supports 100-240V full voltage input and 5V 3a, 9V 2.22a, 12V 1.67a output. It has passed CCC, ETL, PSE, FCC, BSMI certification.

In addition, Huiyue optoelectronics will also bring 20W 1a1c fast charging charger, 30W 1a1c fast charging charger, 50W 1a1c, 50W 2C fast charging charger, 65W 1a1c, 65W 2C fast charging charger and other types of products, which can accept ODM / OEM orders.

4、 Huiyue optoelectronic 27W PD fast charging charger Huiyue optoelectronic 27W fast charging charger has single usb-c port and 1a1c two specifications, and has a variety of colors, such as frosted white, frosted black, semi textured semi glossy white, semi textured semi glossy black, etc. the pin specifications can be divided into China standard, American Standard, Japanese standard, Taiwan standard, Korean standard, European standard, British standard, etc.

iPhone 12 charger cable


The charger is mini in shape, 31mm in length, 32mm in width and 31mm in thickness. It supports 5v3a, 9v3a, 12v2.25a, 15v1.8a, 20v1.35a, pps3.3-5.9v 3a and 3.3-11v 3A outputs, with a maximum power of 27W. The product provides 2-year warranty and has passed the safety certification of CB, ETL, CCC, PSE, CE and FCC.

5、 Huiyue photoelectric 30W PD fast charging charger

iPhone Charger Cable


The single C-Port folding pin 30W PD fast charging device, bp-pd300u1c, produced by Huiyue optoelectronics, has two colors of white and black, and is equipped with the appearance design of semi frosted and semi smooth surface. The length is 43mm, the width is 39mm and the thickness is 28mm.

iPhone Charger Cable


Support 90v-264v ~ 50-60Hz wide voltage input, usb-c interface output support 5v3a, 9v3a, 12v2.5a, 15v2a, 20v1.5a, the maximum output power is 30W, perfect for iPhone 12 series and Samsung S21 mobile phone, can also charge laptop.

The protocol supports pd3.0, Qualcomm qc3.0, Huawei FCP, Samsung AFC and Huawei SCP fast charging. The shell is made of PC material. The product provides 2-year warranty and has passed the safety certification of CB, ETL, CCC, PSE, CE and FCC.

6、 Huiyue photoelectric 30W 1a1c fast charging charger

The 30W PD fast charging of 1a1c interface folding pin introduced by Huiyue optoelectronics is bp-pd301u1c, which has two colors of white and black, and is equipped with the appearance design of semi frosted and semi smooth surface. The length is 43mm, the width is 39mm and the thickness is 28mm.

Support 90v-264v ~ 50-60Hz wide voltage input, output usb-c port support 5v3a, 9v3a, 12v2.5a, 15v2a, 20v1.5a, the maximum output power is 30W, perfect for iPhone 12 series and Samsung S21 mobile phone, can also charge laptop. It also supports the fast charging of Qualcomm qc3.0, Huawei FCP, Samsung AFC and Huawei SCP.

iPhone 12 charger cable


The usb-a port supports 5v3a, 9v2a, 12v1.5a, and the maximum output power is 18W. When the two ports are used together, the output power is 5v4a. The shell is made of PC material. The product provides 2-year warranty and has passed the safety certification of CB, ETL, CCC, PSE, CE and FCC.
