Disassembly report: Femtosecond 65W USB PD Gan charger

Recently, Feipin technology has launched a 65W single C-Port Gan fast charging charger. This charger not only has many fast charging protocols and complete voltage ranges, but also has a group purchase price of 99 yuan. It's a magic weapon with high cost performance. In addition, this charger is also small, light and easy to carry. The measured power density of the charger is 1.11w/cm ³。 Compared with Xiaomi 65W Gan, the performance, weight and volume of both are in the middle of the world. The starting price during group buying is only one third of Xiaomi's. such benefits are rare. Of course, the charger internal materials have become the focus of consumers' attention, and then the charging head network will be revealed for you through the detailed disassembly of the product.

1、 Appearance of femtosecond 65W Gan charger

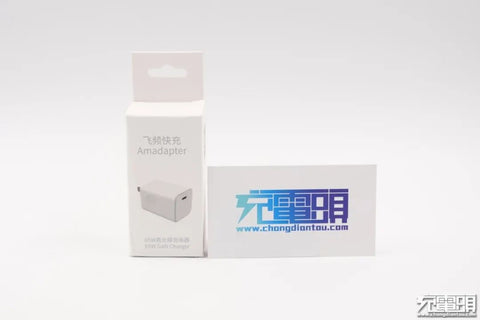

The front of the box is printed with the charger appearance diagram and the words "fast charging and 65W Gan charger". The top of the box has a hook design, which is convenient for product exhibition. The back is printed with fc193c product model and manufacturer information, manufactured by Shenzhen kunxing Technology Co., Ltd.

Six protection marks and related parameters are printed on the side.

The charger is made of PC flame retardant material with white shell, bright surface design and arc transition between the sides.

The input is equipped with fixed GB pin.

The input shell is marked with the parameter information of the charger

Model: fc139c

SN:2020263F00198

Input: 100-240V ~ 50 / 60Hz 1.5A

Output:

PD:5V/3A、9V/3A、12V/3A、15V/3A、20V/3.25A

PPS:3.3-20V/3A

Manufacturer: Shenzhen kunxing Technology Co., Ltd

Supervised by: frequency technology (Shanghai) Co., Ltd

The products have passed CCC certification and VI level energy efficiency certification.

According to the charging head network, the products produced by kunxing technology include Nubia 2c1a 65W three port Gan charger, Nubia red devil 5g mobile phone original 55W USB PD fast charging charger, Nubia red devil 30W USB PD PPS charger, tulas 24W 1a1c fast charging charger, tulas 30W 1a1c USB PD fast charging charger, biaz 65W 2c1a Gan fast charging charger, etc.
iPhone Charger Cable
The output port is equipped with a usb-c port, the black rubber core is not exposed to copper, and amaadapter is printed beside the interface.

The measured charger length is 50.64mm with vernier caliper.

The width is 33.94mm.

The thickness is 34.12mm. The volume of the charger is 58.64cm ³, The power density is 1.11w/cm ³。 The net weight of the charger is about 85g.

Using chargerlab power-z kt002 to detect usb-c port output protocol, the display supports apple 2.4a, Samsung 5V / 2a, DCP protocol, and qc2.0, qc3.0, AFC, FCP multiple fast charging protocols.

iPhone Charger Cable


In addition, its PDO message shows that usb-c port also supports USB pd3.0 fast charging standard, with five fixed voltage ranges of 5v3a, 9v3a, 12v3a, 15v3a and 20v3.25a, and two PPS voltage ranges of 3.3-11v/3a and 3.3-21v/3a.

2、 Disassembly of femtosecond 65W Gan charger

When the input shell is disassembled, it can be seen that the inner part is equipped with brass heat sink and heat conduction pad to help heat conduction, and the pin and PCB board are electrified by shrapnel contact. The charger is composed of two PCB boards which are vertically welded to each other, and the inner side of the radiator is pasted with insulating tape and heat conduction paste for insulation.

High voltage filter electrolytic capacitor and transformer are welded on the side PCB board, and fixed with glue.

At the back of the board, the optocoupler and Y capacitor span between the primary and secondary, in addition to the rectifier bridge and synchronous rectifier.

After observing and analyzing the whole circuit of the charger, it is found that the flyfrequency 65W USB PD Gan charger adopts a typical architecture of switching power supply with wide range output, and the output voltage is controlled by the protocol chip. Now we start from the input to understand the components one by one.
iPhone 12 charger cable
At the input end, there are fuses, safety x capacitors, filter inductors and other components welded, and glued for reinforcement.

Fuse close-up, jacket heat shrinkable tube.

Summary of dismantling charging head net

Fly frequency 65W Gan fast charging charger adopts PC flame retardant material white shell, surface bright surface treatment, arc surface transition between sides, easy to use. The usb-c port supports qc2.0, qc3.0, AFC, FCP and PD fast charging protocols, and has voltage ranges of 5v3a, 9v3a, 12v3a, 15v3a, 20v3.25a, 3.3-11v/3a and 3.3-21v/3a, which can meet the charging requirements of various digital products.
iPhone 12 charger cable
Through the disassembly of the charging head network, we know that this charger adopts a typical architecture of switching power supply wide range output and protocol chip control output voltage. The AC-DC part of the charger is composed of Anson ncp1342 with innoseco Gan power devices, and mp6908a with hengtyco MOS; Finally, the output is controlled by huinengtai USB PD protocol chip husb350. In addition, the input and output components are glued and reinforced, and are also equipped with thermal pad and heat sink to help heat dissipation. The output of two Yongming solid-state capacitors are parallel filtered, and the internal stability and heat dissipation performance are guaranteed.
