The future is high power: McDull 100W 2c1a Gan charger evaluation

I still remember last year, no, the year before last, when Apple launched 96w high-power charger, we disassembled and evaluated it, and asked the industry, "as an industry leader, I believe apple can promote the development and popularization of 100W charger market. Is 2020 the first year of 100W popularization?"

In a twinkling of an eye, 2020 will go with the wind. In this year, we have seen many 100W chargers, most of which are gallium nitride. It seems that our judgment at that time is not wrong.

According to the lunar calendar, gengzi 2020 is not over. In this new year, McDowell launched 2c1a three port 100W gallium nitride charger, adding another fire to the high-power charger market. Now let's see how strong the fire is!

1、 Unpacking and appearance display

If the McDull 100W 2c1a gallium nitride charger is a vigorous fire, then the distinctive hook on its package is a blazing fire.

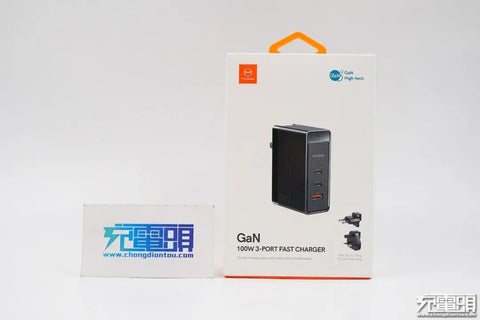

Look, it's a familiar package. The pull-out carton and the hook on the top are integrated with the logo logo of McDull. It's practical and beautiful.

In the middle of the front is a black rendering of the charger, and in the lower right corner are two multi-national conversion pins.

The upper part of the back is the product rendering, and the lower part is the parameters

Input: 100-240V ~ 50 / 60Hz 1.5A

Output: usb-c1 / usb-c2: 3.3-20v ⎓ 3a, 5V ⎓ 3a, 9V ⎓ 3a, 12V ⎓ 3a, 15V ⎓ 3a, 20V ⎓ 5a, 100W max

Usb-c1 + usb-c2: 65W + 30W or 30W + 65W (95w max.)

USB-A:4.5V⎓5A, 5V⎓4.5A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A 30W Max.

Usb-c1 or usb-c2 + usb-a: 65W + 30W (95w max.)

USB-C1+USB-C2+USB-A:USB-C1(60W)+USB-C2(20W)+USB-A(22.5W)

(USB-C2:5V⎓3A, 9V⎓2.22A, 12V⎓1.67A, USB-A:4.5V⎓5A, 5V⎓4.5A, 9V⎓2.5A)

Total output: 100W Max

Size: 82.4mm * 30.6mm * 57.7mm

Weight: 215g

1) Single type-C, type-C supports pd2.0, pd3.0, qc2.0, qc3.0, FCP, apple 2.4a, Samsung AFC, bc1.2

2) Single usb-a, USBA supports qc2.0, qc3.0, FCP, SCP, apple 2.4a, Samsung AFC, bc1.2

It is worth mentioning that there is a faint texture on the package, which is also a fusion of the logo of McDonnell, in addition to beauty, it can also play an anti-counterfeiting role.

In order to reduce the cost of packaging, many mobile phone manufacturers do not even give chargers away. However, the packaging of charger manufacturers has become a "detail maniac", which makes people not know what to say.

Pull out the box and open it. You can see the charger and two switch pins lying firmly in the plastic tray.

Take out everything and take a family photo. They are charger body x 1, British plug x 1, European plug x 1 and instructions x 1.

The main theme of this article -- McDowell 100W 2c1a Gan charger finally came out of the boudoir, just covered with a mysterious veil.

Let's gently take it off, the charger's "five (connect) Officer (mouth)" appeared bashfully in front of us. Due to the careful protection of her mother's family, she was safe all the way. When she arrived at our home, she must love her well.

The dowry of my mother's family is very deep, two pairs of boots! I'm not afraid to go to England, Europe or the world. The author has tried through, perfect, really good. It's just that the epidemic is raging now. We'll take you all over the world when the spring is warm and the flowers are blooming.

Well, it's more serious. The charger is completely black, occasionally dotted with gold "100wgan" to show identity.

The "mcdodo" logo is in line with the three interfaces. The two usb-c interface tongues are black, and the usb-a interface is orange.

Foldable pin, convenient travel storage, reduce scratch, but also for two conversion pin special design.

There are many parameters of the inserted foot, and the excerpts are as follows:

GaN 3-port Fast Charger Pro

Model: ch-810 Pro

Input: 100-240V ~ 50 / 60Hz 1.5A

Output: usb-c1 / usb-c2: 3.3-20v ⎓ 3a, 5V ⎓ 3a, 9V ⎓ 3a, 12V ⎓ 3a, 15V ⎓ 3a, 20V ⎓ 5a, 100W max

Usb-c1 + usb-c2: 65W + 30W or 30W + 65W (95w max.)

USB-A:4.5V⎓5A, 5V⎓4.5A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A 30W Max.

Usb-c1 or usb-c2 + usb-a: 65W + 30W (95w max.)

USB-C1+USB-C2+USB-A:USB-C1(60W)+USB-C2(20W)+USB-A(22.5W)

(USB-C2:5V⎓3A, 9V⎓2.22A, 12V⎓1.67A, USB-A:4.5V⎓5A, 5V⎓4.5A, 9V⎓2.5A)

iPhone Charger Cable


Guangdong Mcdodo Industrial Company Limited

Look at the apple 96w charger that brick knows, high power multi interface charger will not be light. It may be the reason why gallium nitride is used. Mcdo 100W 2c1a Gan charger is still in hand. Let's look at the actual test data.

The charger is measured with vernier caliper, and the width of the charger without pin is about 57.53mm.

The thickness is about 30.48mm.

The length is about 82.19mm.
iPhone 12 charger cable
According to the size of the three circumference, the volume can be calculated as 144.12cm ³。 In terms of power density, if calculated at 100W, the power density reaches 0.69w/cm ³。 Charging head network Summary

In appearance, macdow 100W 2c1a Gan charger is completely black, occasionally embellished with the words "100wgan"“ Mcdodo "logo and three interfaces are in a line, orderly. The two usb-c interface tongues are black, and the usb-a interface is orange. Foldable pin, convenient travel storage, reduce scratch, but also for two conversion pin special design.
iPhone 12 charger cable
In terms of performance, usb-c1/usb-c2 has a maximum output of 100W. All interface compatibility protocols almost include the mainstream fast charging protocol (except for the private protocols of oppo and vivo), and also performs well in compatibility test of mobile phones, computers, iPads and so on. The three interfaces are enough to meet the needs of most people, which is very convenient. The output power of the three ports is about 100W at the same time.

The temperature control of charger is especially good. The temperature rise is only about 40 ℃ after full load in an hour. It means that we have worked hard on heat dissipation. Interested friends can see our disassembly of this charger.

In general, macdow 100W 2c1a Gan charger is very attentive in packaging and appearance, and it is not necessary to worry about its functionality. There is no problem with the compatibility of mainstream products at present. In the future, it will be high-power after all!
