Horizontal and vertical, mobile phone bracket with wireless charging, millet vertical wireless charger

Although wireless charging has not been popularized in most models, the leading models of major mobile phone manufacturers are undoubtedly equipped with this seemingly tall function. There are many kinds of wireless chargers on the market, but there is a big difference from function to power and price.

If there is a wireless charger specially made for a mobile phone series, I don't know whether you believe it or not. Anyway, after experiencing the millet vertical wireless charger, I'm sure. Why do you say that? Because in all the series of millet mobile phones, only the millet 9 series supports the maximum 20W wireless charging rate.

Some users may say that Xiaomi mix3 also supports wireless charging, but after inquiring about the wireless charging that only supports up to 10W, some users may say that they can charge apple, Samsung and other models that support wireless charging, but the charging rate is far less than 20W. So at present, this wireless charger is designed for Xiaomi 9 series, which can be charged horizontally or vertically, Can also play while filling, strength pet powder.

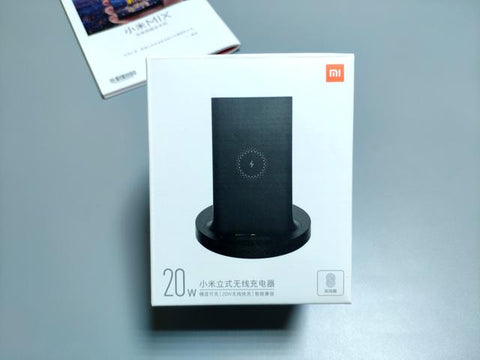

The accessories of the product are relatively simple. There is only a paper instruction manual and an 80cm type-C charging cable. The accessories are not equipped with a charging head. You can use the existing high-power charging head on hand. The point to be noted here is that although the wireless charger supports the speed of 20W, it needs a charging head with power no less than 20W to realize the function of 20W flash charging.

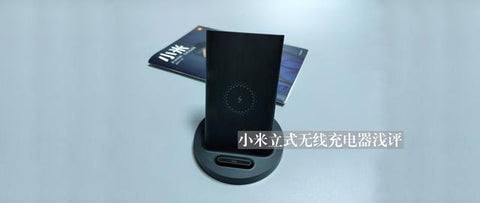

If you look at the appearance of the charger, some users will ask, "isn't this a base for Xiaomi wireless power bank?", The dark blue color matching is really a bit similar. The material is made of scratch resistant PC material with the size of 109.7 * 91 * 91mm.

The round base is inclined 45 ° In addition to the charging panel, there is a grid which can be used to fix the mobile phone. A single green status indicator is designed on the grid. The symbol in the middle of the charging panel is not the position of the wireless charging coil. In order to meet the horizontal and vertical placement, a double coil is designed.

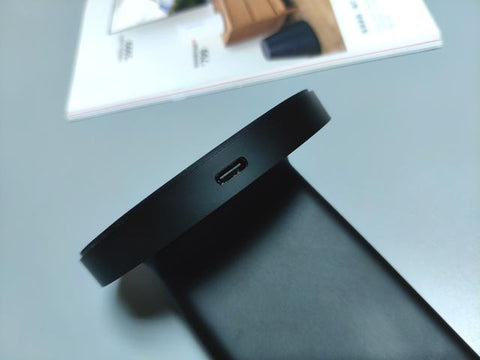

The type-C charging interface is located at the back of the base. It seems that Xiaomi mobile phones and charging devices are equipped with the type-C charging interface as standard. The advantage is that it is very convenient to plug in and out the charging cable. After all, with more and more rechargeable devices around using the type-C charging interface, the charger and the charging cable can also achieve the maximum compatibility.

The bottom of the base is designed with a circle of anti-skid silicone foot pads, which can be stable when placed on the wooden and glass tabletop, and avoid the mobile phone falling due to accidental touch. In terms of the 157.21 * 74.64 * 8.54mm body and 196g weight of Xiaomi 9, it is relatively stable both horizontally and vertically, and can be supported by models with similar body size and weight, But placing a 7.9-inch plate is a lot of work.

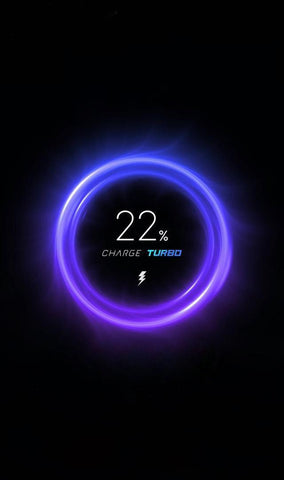

The charging head used in the charging test is the existing 65W model, which can meet the input requirements of the maximum 20W flash charging of the wireless charger. The maximum power of charging for Xiaomi 9 series can reach nearly 20W. This wireless charger is a universal version, which can be compatible with apple, Samsung and other models supporting wireless charging, but the maximum power can only reach nearly 10W.

Many users' mobile phones will use a protective case. In fact, there is no need to worry about wireless charging. As long as it is not made of metal and its thickness is less than or equal to 4mm, it can be sensed. When charging with the iPhone 8p which supports wireless charging earlier, the maximum power can reach nearly 5W.

After placing a metal back cover but not supporting wireless charging, the intelligent FOD foreign body detection of the charger can quickly detect it, and the status indicator will flash green intermittently to remind without discharging.

It should be noted that this wireless charger is not equipped with active heat dissipation function, which relies entirely on natural heat dissipation. The advantage is that it can reduce the threshold of wireless charger. The disadvantage is that in the process of wireless charging, due to the existence of temperature control protection, when the temperature reaches a certain value, the charger will automatically reduce the output power.

It should be noted that this wireless charger is not equipped with active heat dissipation function, which relies entirely on natural heat dissipation. The advantage is that it can reduce the threshold of wireless charger. The disadvantage is that in the process of wireless charging, due to the existence of temperature control protection, when the temperature reaches a certain value, the charger will automatically reduce the output power.

Experience that millet vertical wireless charger is really very suitable for millet 9 series use, 20W wireless charging power is still awesome, of course, it can also charge for other AndroidIOS devices, the design of double coil can meet the charging requirements of horizontal and vertical placement, and the physical examination is much more comfortable than the common cake wireless charger.
